Trailer 7‑Way Wiring: Power and Brake Basics
In the U.S. and Canada, a 7‑way RV blade connector is the common standard for campers, cargo and utility trailers, and boat trailers. This guide explains what each pin does, how to size the 12V charge line, and the essentials for dependable electric brakes—so you can pick the right cord length and accessories for your rig.
What a 7‑Way Connector Powers
A 7‑way blade (often called “RV 7‑pin”) carries these circuits between the tow vehicle and trailer:
- Ground: The return path for all circuits. A solid ground cures many dim-light and weak-brake complaints.
- Tail/marker lights: Keeps your trailer visible at night or in rain/fog.
- Left/Right turn and stop: Directional and brake lamps.
- Reverse (center pin): Back‑up lamps or a reverse-trigger input for cameras on some setups.
- Electric brake output: Variable current from the brake controller to the trailer brakes.
- 12V auxiliary power: Maintains the trailer battery and runs light house loads while driving.
Color conventions can vary by harness brand or past owner work. Always confirm function with a tester or multimeter before crimping.
Typical 7‑Way RV Blade Pin Functions (Common U.S. Conventions)
Viewed looking into the trailer plug face with the locking tab at the top:
- White: Ground
- Brown: Tail/marker
- Yellow: Left turn/stop
- Green: Right turn/stop
- Blue: Electric brake output
- Black: 12V auxiliary/battery charge
- Purple (center): Reverse
If your trailer uses a junction box, check the lid diagram; if not, label your own for easier future service.
Choosing a 7‑Way Cord: Length, Jacket, and Gauge

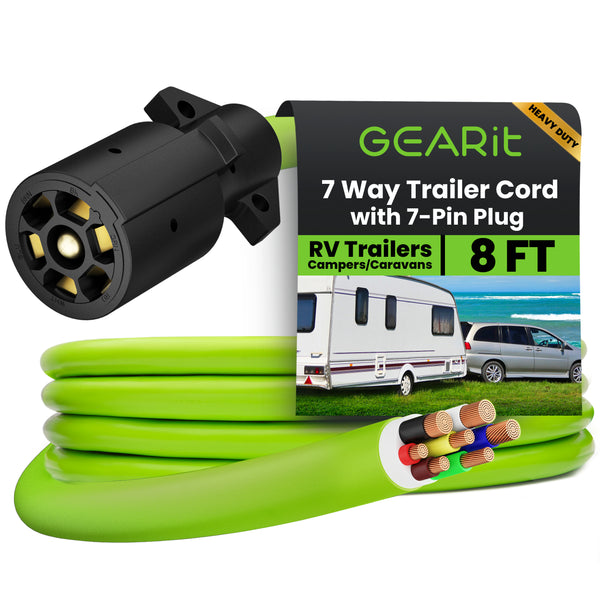

Pick a harness that reaches cleanly from the truck socket to the trailer tongue without stretching during tight turns. For most bumper‑pull trailers, an 8–16 ft pre‑terminated, molded cord is the simplest, most weather‑resistant choice. A molded replacement such as Heavy Duty 14AWG 7 Way Conductor Wire RV Trailer Cord keeps connections sealed and strain‑relieved.

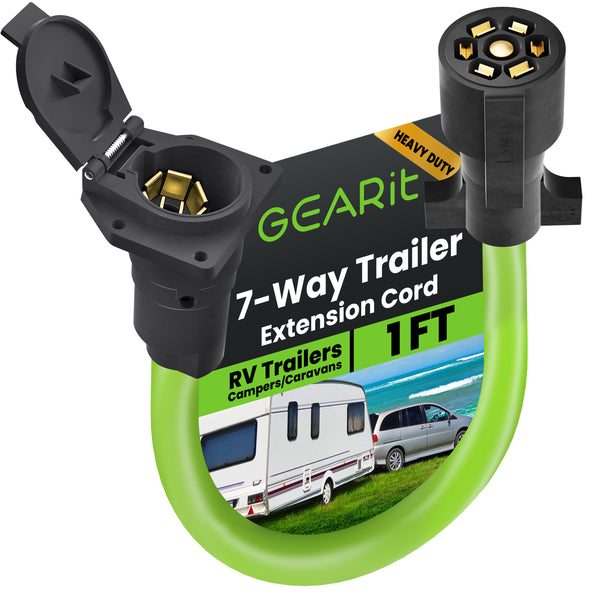

If your tow socket sits farther forward (bed socket, hitch extension, or slide‑in camper), add reach without cutting the OEM harness using a sealed extension like Heavy Duty 7 Way RV Trailer Extension Cord.
Power and Charging: Getting the 12V Line Right
The 12V auxiliary pin can trickle‑charge a small battery and power light loads. For higher charging demand—like DC‑DC chargers or longer truck‑to‑trailer runs—upsize the conductors to reduce voltage drop and heat.
- Light loads or short runs: The built‑in 12V line in a quality 7‑way is usually adequate for LED lighting and maintenance charging.
- Moderate DC‑DC charging (20–40 A) or longer runs: Add a dedicated charge and ground pair with heavier cable (for example, 8 Gauge CCA Electrical Power Ground Wire, 50 Feet) and fuse/breaker near the battery.

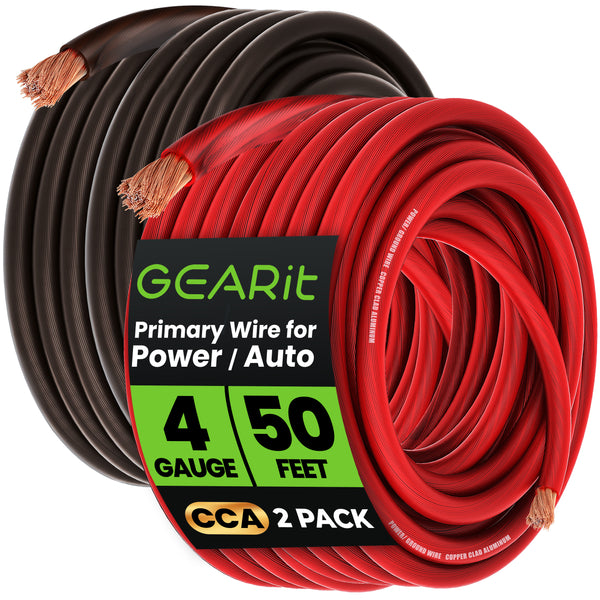

- Higher current (50–60 A+) or very long runs in full‑size pickups/SUVs: Step up to 4 Gauge CCA Electrical Power Ground Wire, 50 Feet to maintain charging performance with headroom.

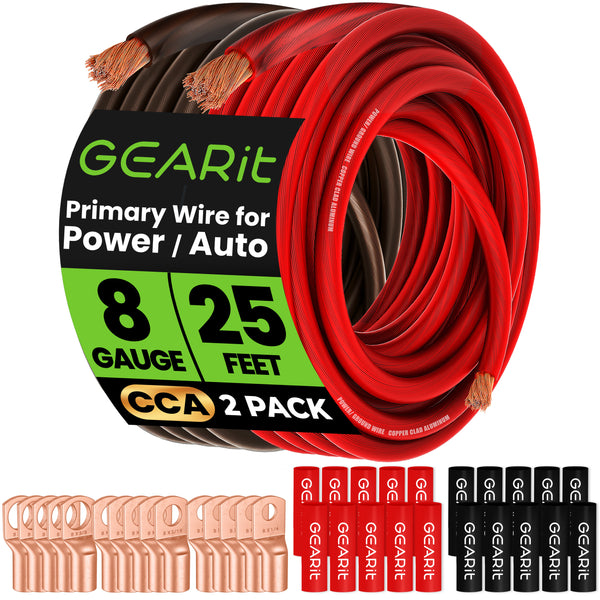

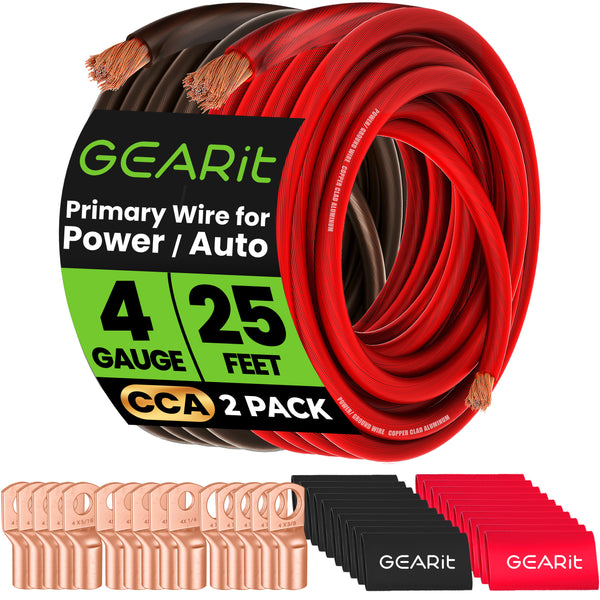

- Simplify clean installs: Pre‑bundled cable, lugs, and heat‑shrink in the 8 Gauge Wire Amp Wiring Kit or 4 Gauge Wire Amp Wiring Kit make routing and termination neater. For long‑run, high‑draw chargers, a larger kit like 1/0 Gauge Wire Amp Wiring Kit offers maximum margin.
Safety basics: Fuse as close to the tow‑vehicle battery as practical; size the fuse to protect the wire and match your charger’s input. Bond the trailer’s return path directly to a clean chassis point or run a dedicated negative back to the vehicle battery for a stable reference.
Electric Brake Basics
Most electric drum brakes use a controller in the tow vehicle that modulates current on the blue wire. You’ll generally pick between:
- Time‑delay controllers: Simple and consistent output; easy setup.
- Proportional controllers: Sense deceleration for smoother stops, especially in city traffic and mountain grades.
For solid performance: keep grounds clean, run appropriately sized conductors to each axle (often 12–14 AWG to the brake magnets), waterproof splices, and balance left/right wire lengths when possible. On a safe, level road, set controller gain so the trailer nearly approaches wheel lock under a firm stop, then back off slightly.
Weatherproofing and Strain Relief
Road spray, salt, and winter brine attack unsealed joints. Use a junction box or sealed connectors, heat‑shrink butt splices, and grommets at metal pass‑throughs. Leave a drip loop under the tongue so water doesn’t wick into the plug, and use a dust cover when parked. If you camp in cold U.S. or Canadian climates, choose a jacket that stays flexible below freezing. For jacket and outdoor ratings context, see Outdoor Use: STW vs SJTW Jackets, IP Ratings, and Storage.
Installation Steps (Quick Checklist)
- Park safely on level ground, disconnect the negative battery terminal, and chock wheels.
- Route the new 7‑way away from sharp edges and moving parts; mock a full turn radius before securing.
- Land each wire to labeled junction posts or pigtails—verify function with a tester, not color alone.
- Crimp firmly, add heat‑shrink, secure strain relief, and apply dielectric grease at the plug.
- Reconnect the battery, test running/turn/stop/reverse, then test brakes using the controller’s manual lever.
Which 7‑Way Solution Fits Your Setup?
Use this compact comparison to choose the approach that matches your trailer and priorities.
| Option | Best For | Pros | Tradeoffs | Typical Lengths |
|---|---|---|---|---|
| Pre‑terminated 7‑way replacement cord | Refreshing a worn plug or short factory lead | Fast install, molded strain relief, clean look | Fixed conductor gauge; less customization | 8–16 ft |
| 7‑way extension | Bed‑mounted sockets, hitch extensions, slide‑in campers | No splicing; preserves OEM harness | One extra connection to keep clean/dry | 1–12 ft |
| Dedicated heavy‑gauge charge/ground pair | DC‑DC charging, larger battery banks, long runs | Lower voltage drop, faster charging | More routing effort and parts | Vehicle length dependent |
For a molded drop‑in cord upgrade, see Heavy Duty 14AWG 7 Way Conductor Wire RV Trailer Cord. If you simply need more reach from truck to tongue, a sealed option like Heavy Duty 7 Way RV Trailer Extension Cord avoids splices. When charging performance is the bottleneck, pair the 7‑way with a heavier auxiliary run using 4 Gauge CCA Electrical Power Ground Wire, 50 Feet.
Troubleshooting Signal and Power Issues
- One side blinks fast or looks dim: Check the lamp ground and the matching turn/stop wire for corrosion at the junction box.
- No brakes or weak brakes: Verify controller output on the blue wire, continuity to each brake magnet, and the main ground bond to chassis.
- Trailer battery won’t charge while driving: Measure voltage at the trailer battery with the engine running. If it’s far below alternator voltage, increase wire gauge on the charge/ground pair and confirm a low‑resistance ground path.
- Hot plug or scorched blades: Clean contacts, tighten terminals, and reduce cord strain. For broader AC hookup safety, see Troubleshooting Tripped Breakers and Hot Plugs.
Planning a Complete RV Power Setup?
Road trips that mix towing with campground hookups benefit from a quick power plan. For outlet types and where each makes sense, review RV Power Basics: TT‑30 vs 14‑50 Explained with Use Cases. If you camp where voltage can sag or spike, compare protection approaches in Surge Protection for RVs: 30A vs 50A and When You Need EMS. Generator users can size distances and cord types with Generator Cords: L14‑30 and L5‑30—What They Power and How Far, and before you plug in, run through Campground Hookups Checklist: Before You Plug In. Cold‑weather travelers can prep gear using Winterizing Your Power Gear: Inspection and Care. If you’re choosing long 30A/50A cords, use the math in Voltage Drop Calculator: Picking the Right Gauge by Length (30A/50A). For safe adapter choices, see Adapters and Dogbones: Safe Combinations and What to Avoid.
Frequently Asked Questions
Do I need a brake controller if my trailer has electric brakes?
Yes. Electric brakes need a controller in the tow vehicle to modulate current on the blue wire. Time‑delay models are simple; proportional models usually feel smoother on hills and in stop‑and‑go traffic.
What gauge wire should I use for the 12V charge line?
For light loads, the 7‑way’s built‑in 12V line is usually fine. For DC‑DC chargers or long runs, upsize to reduce voltage drop—8 AWG suits many moderate chargers, while 4 AWG (or larger) is better for higher current and extra distance. Always pair the upgrade with a proper fuse or breaker near the source.
How long should my 7‑way cord be?
Long enough to make full turns without tension or rubbing. Many bumper‑pull trailers do well with 8–12 ft. If your socket is in the truck bed or you use a hitch extension, a 1–12 ft sealed extension is a clean fix.
Should I run a dedicated negative wire or use the trailer frame for ground?
Either works if done correctly. A direct negative return to the tow‑vehicle battery is the most stable for high‑current charging. If you use the frame, clean to bare metal and protect the bond from corrosion; add a star washer or toothed washer for a gas‑tight bite.
