HDR games that pop, CAD renders that never stutter, and color‑critical edits that stay in sync across multiple monitors all share one hidden requirement: a pipeline fast enough to push every frame from your GPU to your display without corruption.
Choosing the best DisplayPort cable transforms raw horsepower into pixel‑perfect results, whether you are chasing 8K workflows, 240 Hz esports victories, or rock‑solid corporate deployments. This guide unpacks DisplayPort’s technical edge, shows how to avoid bandwidth‑strangling impostors, and spotlights GEARit cables engineered for flawless performance today and breathing room tomorrow.
Why DisplayPort Still Reigns in 2025
DisplayPort 1.4, and now the 2.1 spec, still lead high‑resolution, high‑refresh workflows because each lane moves more data than any competing HDMI cable, supports native daisy‑chaining through full‑size or mini DisplayPort interfaces, and flexes its packetized stream to handle HDR metadata without wasted bandwidth. Certified cables can feed a 4K 240 Hz panel or two 4K 60 Hz screens in Multi‑Stream Transport while simultaneously passing lossless audio, HBR3 commands, and back‑channel data for Thunderbolt 4 docks. That versatility keeps creative studios, enterprise hot‑desks, and esports arenas future‑proof as graphics card firmware unlocks even higher link rates.
Despite HDMI’s household ubiquity, DisplayPort’s locking connector, auxiliary channel for firmware updates, and DSC (Display Stream Compression) support give it an edge in professional rigs where downtime is money. GPUs from NVIDIA, AMD, and Intel still ship with more DP ports than HDMI because board partners know creators rely on their bulletproof handshake routine. For engineers running simulation clusters or traders banking on millisecond refreshes, DisplayPort’s deterministic timing beats consumer‑grade alternatives every day of the week.
Key Specs That Define a Premium Lead
A jungle of marketing blur blurs the line between certified lifelines and “good‑enough” cords pulled from bargain bins. Understanding three core metrics—bandwidth headroom, shielding integrity, and pin durability—sets you up to pick winners instead of time‑bombs.
Bandwidth & Signal Integrity
Bandwidth ratings tell you how much uncompressed data the copper can carry before eye diagrams collapse. DisplayPort 1.4 needs 32.4 Gbps across four lanes, while 2.1 rockets to an 80 Gbps data rate in UHBR20 mode. Cable length matters: a six‑foot run rated “good enough” for 4K 60 Hz may choke when firmware unlocks 4K 240 Hz on a high‑refresh DisplayPort monitor or when a DisplayPort to HDMI cable handshake calls for dual‑mode signaling at higher display resolutions. GEARit’s 8K braided line ships with a 34 Gbps reserve above the 1.4 requirement, ensuring error‑free DSC streams for VR headsets, and the reels bear the DisplayPort certified cables hologram, so you know each link is vetted by VESA.
Extra‑thick 28‑AWG oxygen‑free copper conductors reduce attenuation per meter, while low‑loss foam dielectrics keep impedance at 85 Ω ± 5 %. Triple‑layer shielding combines aluminum foil wraps around each pair with an overall copper braid, widening the eye opening so equalizers in your GPU work less and radiate less heat.
Shielding & EMI Rejection
High‑frequency differential pairs behave like antennas; park an unshielded cord near a 240 V compressor relay, and your DisplayPort source device can drop frames across multiple displays. Top‑tier cables wrap each lane in aluminum‑Mylar foil and add an overall copper braid that bonds to the grounded shell, keeping eye diagrams open even when routed beside USB‑C connectors that shuttle USB Type‑C power. GEARit’s DisplayPort 1.4 line slashes common‑mode noise by 45 dB—enough to snake past live power rails without artifacts—while ferrite beads at each end soak up residual interference, an unsung hero when daisy‑chaining panels in digital‑signage walls.
Connector Engineering
DisplayPort’s 20‑pin plug carries 50 mA of 3.3 V auxiliary power plus eight high‑speed lanes. Cheap stamping can misalign pins, leading to hot‑plug shorts that brick USB‑C docks. GEARit machines its shells from zinc alloy, then gold‑plates contacts to 15 µin for low resistance across 20,000 insertion cycles. The integrated latching button clicks firmly, resisting accidental tugs behind standing desks. Heat‑resistant polymer inserts keep pin pitch consistent even when rack temperatures hit 140 °F.
Certifications & Compliance
Look for VESA Certified DP 8K logos or QR codes linking to official test reports. GEARit embeds tamper‑proof holograms on each retail sleeve; scanning them reveals bandwidth tests run on Teledyne LeCroy scopes. Compliance guarantees you won’t wake up to a firmware update that silently downgrades your monitor to 144 Hz.
Choosing the Right Construction for Your Setup
DisplayPort cables fall into three broad builds: passive copper, hybrid optical, and USB‑C variants, each optimized for specific distances and use cases.
Passive Copper (≤15 ft)
For desktop rigs where the GPU sits within arm’s reach, passive copper offers zero‑latency transmission and broad compatibility with KVMs and docking stations. High‑strand‑count cores stay flexible, bending behind monitor arms without stressing solder joints. GEARit’s 6 ft Premium Braided cable wraps nylon over PVC, adding abrasion resistance while staying supple enough to snake through grommets. An inner Kevlar spline prevents kinks during chair rollovers.
Short copper leads also simplify firmware diagnostics. Passive pairs let service tools inject AUX commands without optical transceivers in the way, so IT can flash monitors or troubleshoot MST daisy‑chains quickly.
Hybrid Fiber–Copper (15–50 ft)
Projectors mounted across auditoriums or esports stages need length without attenuation. Hybrid Active Optical Cables (AOCs) convert TMDS lanes to light, hauling 8K 60 Hz up to 50 ft while copper conductors retain power delivery for EDID and side‑band channels. GEARit’s 30 ft DP 1.4 AOC weighs a third of equivalent copper and passes through ¾‑inch conduit easily. Direction‑marked heads eliminate mis‑hookups, and a microcontroller auto‑compensates for temperature drift.
Fiber immunity to EMI shines in server farms where 48 V power trays emit broadband hash. Even under dense cable trays, eye diagrams stay clean, protecting mission‑critical KVM matrices.
USB‑C to DisplayPort (Docking & Tablets)
Thunderbolt 3/4 laptops often drop full‑size ports, pushing video over USB‑C alt‑mode. GEARit’s USB‑C‑to‑DP 1.4 cable taps four high‑speed lanes, delivering 4K 120 Hz to external monitors while charging at 60 W thanks to integrated PD e‑markers. Streamers can dock a MacBook Pro, capture gameplay at 4K 60 Hz, and run OBS without a dongle farm. The reversible Type‑C head includes stainless‑steel reinforcement, surviving 12,000 plug cycles—ideal for hot‑desk rotations.
Installation & Troubleshooting Best Practices
Respect Bend Radius and Strain Relief
Even the strongest braid can’t defy physics: bend a cable below four times its diameter, and impedance spikes appear. Route leads in gentle arcs, secure with Velcro, and avoid zip ties that pinch dielectric foam. For ceiling drops, use J‑hooks every four feet to prevent sagging that tugs on GPU ports.
When dressing AOCs, leave service loops; fiber cores aren’t as forgiving to sudden tugs. Snap‑in grommets protect sharp conduit edges from nicking PVC. Color‑coded tags on both ends accelerate future swaps, minimizing desk downtime.
Test Before You Close the Rack
Modern GPUs include link‑training readouts. Ensure HBR3 (8.1 Gbps) per lane on DP 1.4 or UHBR20 on 2.1 before sealing panels. If the monitor defaults to 4K 60 Hz, swap in a known‑good cable before blaming drivers. Loop a YouTube HDR test for ten minutes; watch for brief dropouts indicating marginal shielding.
Firmware and EDID Hygiene
Keep monitoring firmware current; patches often refine DSC handling. Use DP aux analyzers to back up EDID tables before flashing. A corrupted block can lock refresh rates to 60 Hz regardless of cable quality. GEARit cables support AUX channel speeds up to 720 Mbps, ensuring smooth DPCD negotiations even with long AOCs.
Featured GEARit DisplayPort Cables

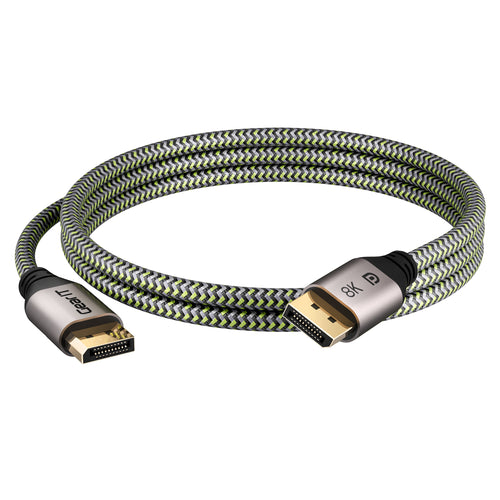

GEARit 8K DisplayPort 1.4 Braided Cable (6 ft)
This flagship passive lead pairs triple‑layer shielding with rugged nylon mesh, certified for 8K 60 Hz and 4K 240 Hz. Gold‑plated latches stay locked through LAN‑party bumps, while 28‑AWG oxygen‑free copper holds eye margins even next to PSU cables. Ideal for high‑refresh gaming monitors on standing desks.
Its compact 6 ft length minimizes crosstalk in dense builds and tucks neatly behind wall‑mounted panels. VESA‑certified pin mapping ensures flawless hot‑plug detection across AMD, NVIDIA, and Intel GPUs. GEARit backs the cable with a limited‑lifetime warranty to underline its studio‑grade reliability.
GEARit DisplayPort 1.4 to DisplayPort Cable (10 ft) – Black PVC
Need a no‑nonsense workhorse for office KVMs or dual‑monitor pods? This pure‑copper run handles 32.4 Gbps without fancy braids, sliding through grommets easily. Molded strain relief extends connector life, and VESA certification means plug‑and‑play with any workstation GPU.
A matte PVC jacket resists desk‑edge abrasion and wipes clean of coffee spills during crunch time. Low‑skew pair twisting preserves colour accuracy across dual 4K panels for designers. The generous 10 ft reach removes the need for extensions, keeping latency microscopic and signal integrity tight.

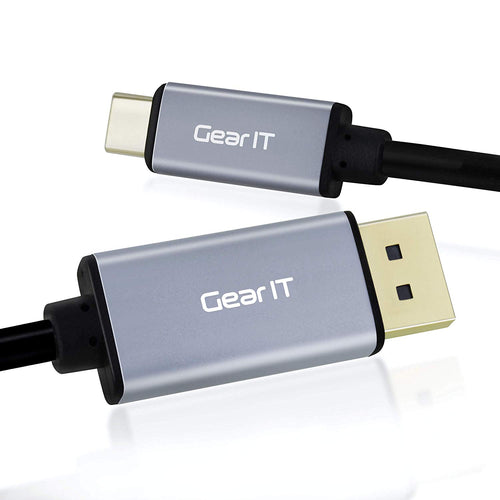

GEARit USB‑C to DisplayPort 1.4 Cable (6 ft)
Thunderbolt‑equipped ultrabooks often skip full‑size ports. This cable bridges the gap, delivering 4K 120 Hz HDR while charging laptops at up to 60 W. Stainless‑steel shells resist dings in shared hot‑desk setups, and E‑marker chips negotiate alt‑mode reliably across firmware updates.
Dynamic HDR pass‑through lets creators preview Dolby Vision grading on external reference monitors without missing metadata. Display Stream Compression support keeps daisy‑chained 5K displays refreshing at 60 Hz without visual artefacts. GEARit’s lifetime warranty covers daily hot‑desk swaps and road‑warrior abuse alike.
Upgrade Every Pixel—Choose GEARit Confidence
Displays grow sharper and frame rates climb, but the conduit carrying those bits remains the critical path. Equip your rig with the best DisplayPort cable today, and you’ll unlock every Hertz and HDR highlight your GPU can muster tomorrow. Shop DisplayPort Cables at GEARit—founded in 2006 by California‑based connectivity enthusiasts committed to pairing innovative accessories with friendly, knowledgeable support—and enjoy visuals without compromise.
