Coaxial cables, often just called coax, play an important role in modern communication systems. They are designed to transmit high-frequency signals with minimal interference, making them essential for services like cable television, internet, and radio frequency transmission. You might not realize it, but coaxial cables are all around you, enabling the connection between your devices and the digital world.

In this article, you will learn about the structure of coaxial cables, how they work, and the various types available. You’ll also discover the many applications of coaxial technology and why it remains a popular choice in telecommunications today. By understanding the importance of coaxial cables, you can appreciate the backbone of your everyday communication.

What is a Coaxial Cable?

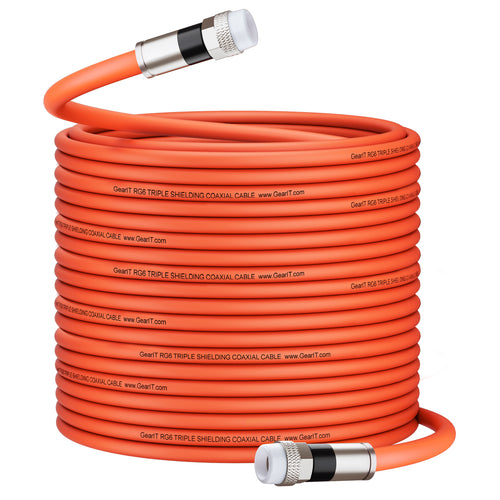

Shop: Waterproof RG6 Coaxial Cable

A coaxial cable is an important component in transmitting signals. Its design helps reduce interference, making it ideal for various applications. Understanding its structure and different types will help you choose the right cable for your needs.

Definition and Structure of a Coaxial Cable

A coaxial cable is a type of electrical cable made up of four main parts:

• Inner Conductor: This is the central wire that carries the electrical signal.
• Dielectric Insulator: Surrounding the inner conductor, this layer prevents the signal from escaping and minimizes interference.
• Metallic Shield: This outer layer provides protection against external electromagnetic interference. It can be made of braided copper or aluminum foil.
• Outer Insulating Layer: The final layer protects the cable from physical damage and environmental factors.

This construction allows coaxial cables to transmit high-frequency signals efficiently. It provides a strong barrier against noise, making it suitable for both residential and commercial use.

Common Types of Coaxial Cables

There are several types of coaxial cables, each designed for specific uses. Here are some common ones:

• RG6: This is widely used for satellite and cable television. It has a thicker dielectric which means better insulation and lower signal loss.


• RG11: This type is used for long cable runs. It has even thicker insulation, making it ideal for longer distances without losing signal strength.


• RG59: Common for security cameras and low-frequency applications, it has less shielding than RG6 and RG11.



Each type varies in impedance and thickness, which affects performance. Choosing the right coaxial cable depends on your specific needs and signal requirements.

Uses of Coaxial Cables

Coaxial cables play a crucial role in various applications, primarily in television and internet connectivity. Their design allows for efficient transmission of high-frequency signals, making them a preferred choice for many tech uses.

Television and Video

In the world of television and video, coaxial cables are essential. They transmit cable television signals directly to your home. This includes channels from cable providers as well as satellite TV broadcasts.

These cables also connect video surveillance systems. For example, they link cameras to recording devices. The strength of coaxial cables lies in their ability to carry high-frequency signals with minimal interference. This means you enjoy clear video and sound quality.

Coaxial Cable for Internet

When it comes to internet connectivity, coaxial cables are widely used. They form the backbone of many broadband internet connections. Cable internet relies on these cables to provide fast and reliable service.

In addition, coaxial cables are an integral part of hybrid fiber-coaxial (HFC) networks. This mix of fiber and coaxial technology delivers high-speed internet effectively. Their advantages include quick installation and strong performance, making them a popular choice for homes and businesses alike.

How Coaxial Cables Work?

Coaxial cables transmit signals through a specific design. They consist of an inner conductor, a dielectric insulating layer, and an outer conductor. This construction helps to protect the signals from interference.

The coaxial design allows for high-frequency signals to pass with minimal loss. This is why coaxial cables are commonly used for television and internet connections.

When a signal travels through the cable, it moves along the inner conductor. The outer conductor keeps any potential noise or interference at bay. This helps maintain a clear and stable signal.

Coaxial cables are capable of carrying various types of signals, including:

• Data: For internet connections
• Voice: For telephone communication
• Video: For television broadcasts

Different types of coaxial cables may vary in size and materials. Some are designed for specific applications, like high-speed data transfer. Others may be used for general household purposes.

Advantages of Using Coaxial Cables

Coaxial cables offer significant benefits in both signal quality and versatility. Their unique construction minimizes interference and maintains high-quality transmission, making them suitable for many applications. Additionally, the ease of installation and compatibility with various devices make them a popular choice.

1. Signal Quality and Reliability

Coaxial cables are designed to deliver high-quality signal transmission. They have a central conductor surrounded by an insulating layer and a protective shield. This design helps reduce electromagnetic interference, ensuring a clear signal.

The ability of coaxial cables to maintain signal integrity over long distances is a major advantage. They can transmit signals without significant loss, making them ideal for applications like cable television and internet connections. This reliability means fewer interruptions and better performance in your network.

2. Versatility and Ease of Use

Coaxial cables are versatile and easy to work with. They can be used in various settings, from home entertainment systems to commercial telecommunications. Installing these cables is straightforward, and you can often make repairs or changes without specialized tools.

Moreover, coaxial cables are compatible with different connectors, allowing you to use them with many devices. Whether connecting a television, modem, or satellite dish, you’ll find coaxial cables adaptable to your needs. This flexibility simplifies setup and enhances your overall experience.

Coaxial Cable for Internet

Coaxial cables transmit internet signals through a core copper wire. This wire is surrounded by insulation layers and a braided shield, which helps protect the signal from interference.

When your internet service provider connects to your home, the coaxial cable carries data using DOCSIS (Data Over Cable Service Interface Specification) technology.

DOCSIS enables high-speed internet delivery by allowing multiple channels to transmit data simultaneously. This means faster downloads, smoother video streaming, and better online gaming experiences.

Advantages of Using Coaxial Cables for Internet

Coaxial cables offer several benefits for internet connections. They are known for their high bandwidth capabilities, which can support faster internet speeds. This makes them suitable for heavy users, such as gamers or families with multiple devices.

Additionally, coaxial cables are widely available and easier to install than some other options, like fiber optics. They are also more reliable in many environments. Coaxial cables are less susceptible to signal loss and interference, which ensures a stable internet connection even in challenging settings.

Setting Up Your Internet with Coaxial Cables

Setting up your internet using coaxial cables is straightforward. First, locate the coaxial cable outlet in your home. Connect one end of the coaxial cable to the wall outlet and the other end to your modem.

Next, connect your modem to the router using an Ethernet cable. Ensure all connections are snug for optimal signal strength. To troubleshoot common issues, check that the coaxial cable is securely connected and inspect for any visible damage. Adjust your equipment’s placement if you experience weak signals to improve performance.

Connectivity and Installation of Coaxial Cables

Coaxial cables are essential for various applications, including cable television, internet connections, and radio communications. Understanding connector types and adhering to best practices for installation will help you optimize performance and ensure safety.

Coaxial Cable Connector Types

Coaxial cables use several connector types based on their application. The most common are:

• F Connectors: Widely used in TV and internet connections, F connectors provide a secure and weather-resistant link.
• BNC (Bayonet Neill-Concelman): Common in video and radio applications, BNC connectors allow for quick attachment and detachment.
• TNC (Threaded Neill-Concelman): Offering greater durability than BNC, TNC connectors are suitable for outdoor settings.
• SMA (Subminiature version A): Ideal for microwave frequency applications, SMA connectors are compact and reliable.
• RCA (Radio Corporation of America): Typically used in audio and video systems, RCA connectors are easy to connect.

Choosing the right connector is crucial for maintaining signal integrity.

Best Practices for Installation

When installing coaxial cables, proper planning and execution are key. Follow these guidelines:

1. Plan the Layout: Identify where the cable will run and the locations of outlets. Avoid sharp bends that could damage the cable.
2. Use the Right Tools: Ensure you have cable staples or clips for securing the cable and a proper drill bit for cutting holes.
3. Drill Holes Carefully: Make openings slightly larger than the cable's diameter to avoid pinching it.
4. Secure Connections: When connecting cables, make sure each connector is tight but not overly forceful to prevent damage.
5. Avoid Interference: Keep coaxial cables away from power lines and other sources of electromagnetic interference.

Following these practices helps maintain quality signal transmission.

Grounding and Safety

Grounding coaxial cables is necessary for safety and signal stability. Here are important safety steps:

• Grounding: Connect the cable's outer shield to a proper grounding point. This prevents any electrical surges or lightning strikes.
• Direct Burial Options: If you're burying coaxial cable underground, use outdoor-rated cables designed for direct burial. These cables typically have additional insulation for protection.
• Check Local Codes: Always ensure your installation meets local safety codes and regulations.

Proper grounding and cable choices contribute to safety and reliability in coaxial cable systems.

Comparisons and Alternatives

Understanding how coaxial cables stack up against other types of cables can help you choose the right one for your needs. You might also want to consider any advancements in technology that could impact your decision.

Coaxial vs. Optical Fiber

Coaxial cables are commonly used for audio, video, and data transmission. They differ from other cable types, like optical fiber and twisted pair cables.

Optical Fiber: This type uses light to transmit data. It offers faster speeds and higher bandwidth than coaxial cables but can be more expensive and harder to install.

Coaxial vs. Twisted Pair

Twisted Pair often used in computer networks, and twisted pair cables can be less costly. They are suitable for shorter distances but may experience more interference than coaxial cables.

When comparing RG-59 and RG-6 cables, RG-6 is generally preferred for high-bandwidth applications. It has a thicker copper core and better shielding, which reduces signal loss over longer distances. RG-59 is lighter and used for shorter runs or lower-frequency signals.

Advancements in Cable Technology

Cable technology has come a long way. New materials and designs continue to improve performance.

• Cable Jacket: The outer jacket of coaxial cables now comes in various materials like PVC or low-smoke options. These improvements enhance durability and safety.


• Enhanced Shielding: Many coaxial cables now include advanced shielding that protects against electromagnetic interference. This ensures clearer signals, especially in crowded environments.



Newer cable types like high-speed coaxial cables are designed to support modern demands, making them viable options for both television and internet use.

Conclusion

In summary, coaxial cables are essential components in modern communication, known for their robust structure and efficient signal transmission. They play a critical role in various applications, from internet connectivity and cable television to satellite communications and CCTV systems. Understanding the different types and their specific uses can help you select the right coaxial cable for your needs.
