GEARit 14 gauge THHN wire is single-conductor copper building wire for conduit, raceway, branch circuit wiring, feeders, panels and general electrical installations. Choose solid or stranded copper, your color for easy circuit identification, and a 50, 100, 150 or 200 ft spool.
Features
- THHN building wire: Single conductor 14 AWG copper wire for approved conduit and raceway systems, branch circuits, feeders and panels.
- Solid or stranded copper: Solid copper gives firm terminations on fixed runs, junction boxes and panels; stranded copper is easier to pull through conduit with bends.
- 600V, 90°C rated: PVC insulation with a tough nylon outer jacket helps resist heat, moisture, oil, gasoline and abrasion.
- Built for the job: 14 AWG for lighting circuits, switches, fixtures, controls and lower-load branch wiring.
- Color-coded jackets: Black, red, white, green and yellow help identify hot, neutral and ground conductors during installation.
Available sizes
| Solid: Black, Green, Red, White, Yellow | 50, 100, 150, 200 ft |
| Stranded: Black, Green, Red, White, Yellow | 50, 100, 150, 200 ft |
Specifications
| Wire type | THHN single-conductor building wire |
| Gauge | 14 AWG |
| Conductor | Copper, solid or stranded |
| Voltage rating | 600V |
| Temperature rating | 90°C |
| Insulation / jacket | PVC insulation, nylon outer jacket |
| Colors | Black, Green, Red, White, Yellow |
| Lengths | 50 ft, 100 ft, 150 ft, 200 ft |
For use in approved conduit and raceway systems. Verify local electrical code, ampacity and installation requirements before use; permanent installations should be completed by a qualified electrician.
Specifications
Built to spec.
| Product type | THHN Wire |
| Conductor | Bare Copper |
| Gauge | 14 AWG |
| Number of Conductors | 1 |
| Voltage | 600 Volt |
| Type | Solid, Stranded |
| Color | Black, Green, Red, White, Yellow |
| Length | 50 Feet, 100 Feet, 150 Feet, 200 Feet |
| Brand | GEARit |
| Warranty | Lifetime warranty |
Why GEARit
Built to work. Built to last.
Solid or Stranded Copper

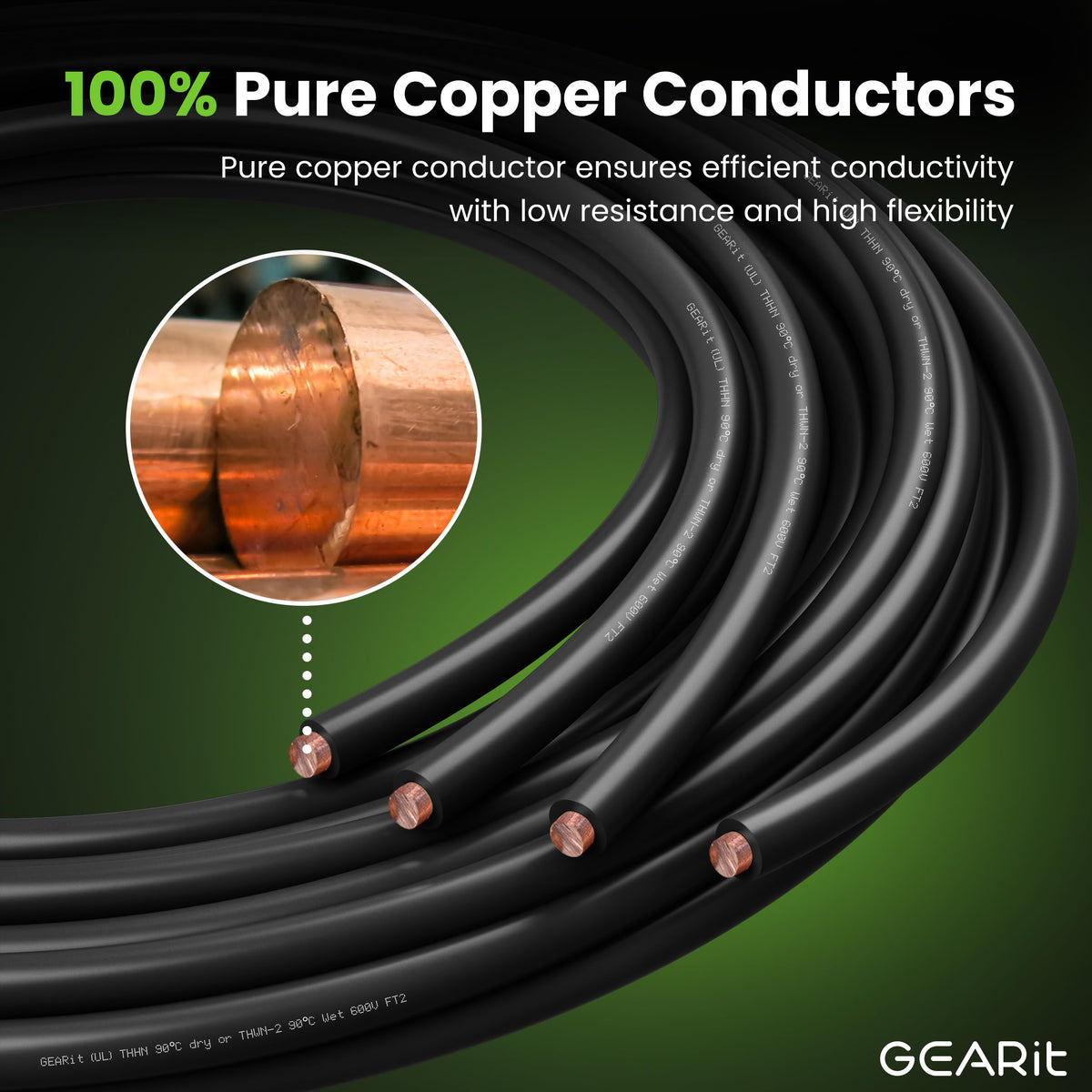

100% Pure Copper Conductors
90°C Rated, PVC & Nylon Jacket
Handles Tough Environments
Residential & Commercial Wiring
Pro Job Site & DIY Ready

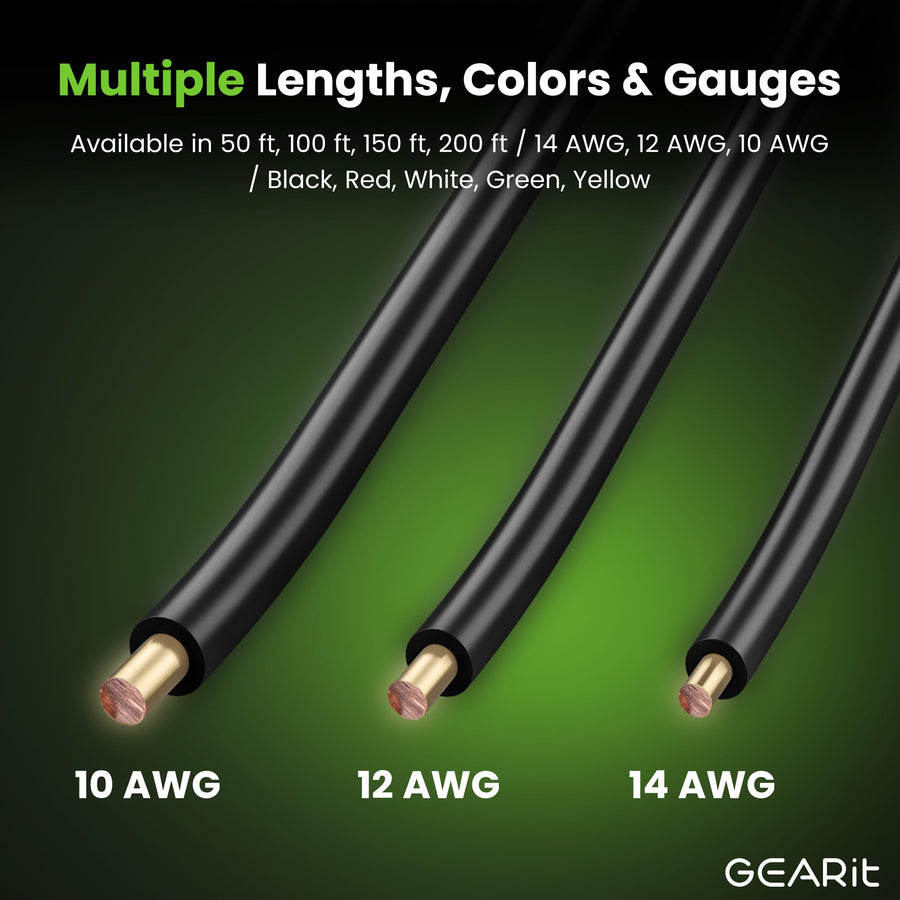

Multiple Lengths, Colors & Gauges

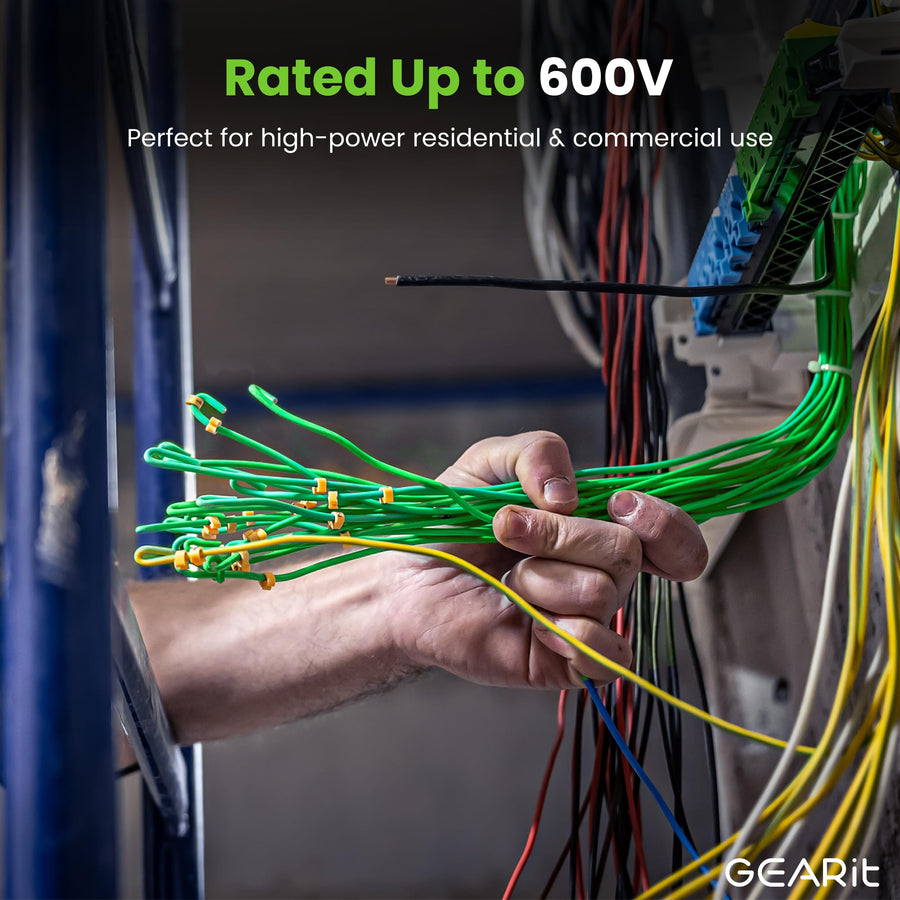

Rated Up to 600V
We bought 9 rolls of 100’ wire for our home build, spooled them, to run together in our conduit to our septic and one of the rolls is about 10’ short! So irritating! Now we have to remove them all & purchase a full roll from somewhere else and re-pull all of them..
Made in China, My only complaint is 50’ being wound on a spool that was meant for 500’ wastes a lot of storage space.
I order the 14 ga solid wire 100 ft spools.They just arrived. I immediately noticed 1 spool, the white was heavier than the black.The black spool is definitely short. I haven't taken the wrapping off so I don't know if the white is to much or the black is to short.Can anyone tell me how much these spools should weigh? I don't want to cause an issue if the black spool is the 100 ft. I feel like something was probably mislabeled.
Good wire tough insulation. I used it for a 6 meter antenna. Works fine.
200 ' = equaled 200 ' the length was what I orderd , no extra
Good, high quality copper wire. Works well!
What can I say it’s wire it conducts electricity came on time great value highly recommend I bought a used packet it was missing approximately 3 feet but I got it at a better price I only needed about 10 feet of it
This wire is only 75ft long, not the advertised 100ft
It worked out almost fine.. but upon twisting and stretching it broke easily.
I found it very difficult to strip the outer cover from this wire. I've been working with electrical wire for a very long time and this is the hardest wire to strip that I've ever used.
This wire is solid copper wire and the insulation is great on it. I needed to make a few electrical connections for my light switches inside the junction box and found some stranded wires inside which were starting to break down. Stranded wires are good for when you need it to be flexible but it’s not good for electrical connections. This is the wire you want to use for solid connections inside your junction boxes.
I have not used much of the wire yet but what I have used seems to be good quality. I would buy this product again.
Needed this wire to add a neutral that was not present. Worked perfectly as it was what would normally be found in 14-2 NM cable.
One 100’ roll (black) of four purchased was short about 15 feet of wire. Did not discover until I had pulled all four through conduit run so had to install junction box to finish job.
I had a job with accurate measurements, the spool lasted only 3/4 of the project, I had already used it, so couldn’t return it. It is really bad that only for more profit they do this
This was 100 feet of green 14 Gauge Solid THHN. No issues
Didn't like it
Product was fine, hard to strip but I guess that means tough insulation, so that's a good thing. I got white, black and green. The black one was only about 40 ft. Ended up with just enough - within inches. I guess the product was returned by someone who stole what they needed and returned the rest. Getting returned stuff is a generic problem with Amazon, so I didn't mark then down too much.
I'm satisfied.
