Optimizing Extension Cord Gauge for Electrical Load


Extension cords are indispensable tools for providing power to devices and appliances in various settings, from homes to worksites. However, not all extension cords are created equal, and using the wrong cord gauge for your electrical needs can lead to safety hazards and performance issues. In this article, we delve into the importance of extension cord sizing and load capacity, highlighting the significance of matching the cord gauge to the electrical demand for optimal performance and safety.

Understanding Extension Cord Gauge:

Extension cords are available in different gauges, typically ranging from 18 to 10 gauge, with lower gauge numbers representing thicker wires and higher current-carrying capacities. The gauge of an extension cord directly impacts its ability to handle electrical loads efficiently. Thicker wires (lower gauge) offer less electrical resistance and can safely carry higher currents over longer distances without overheating.

Load Capacity and Electrical Demand:

Determining the appropriate extension cord gauge involves considering the electrical demand of the connected devices or appliances. Each electrical device has a specific power requirement measured in watts or amps. Overloading an extension cord with a lower gauge than required can result in voltage drops, overheating, and even electrical fires.

Matching Cord Gauge to Electrical Demand:

To ensure optimal performance and safety, it's essential to match the extension cord gauge to the electrical demand of the connected devices. Here's a general guideline for selecting the right cord gauge based on the electrical load:

  1. 1. Light Duty (Up to 10 Amps): For low-power devices such as lamps, chargers, and small electronics, a 16-gauge extension cord is suitable. It can safely handle up to 10 amps of current over short distances.

  2. 2. Medium Duty (Up to 13 Amps): For moderate-power devices like power tools and kitchen appliances, a 14-gauge extension cord is recommended. It can handle up to 13 amps of current, providing sufficient power without voltage drops.
  3. 3. Heavy Duty (Up to 15 Amps): High-power devices such as air compressors, heaters, and power saws require a 12-gauge extension cord to handle up to 15 amps of current. This gauge ensures reliable power delivery over longer distances.
  4. 4. Extra Heavy Duty (Up to 20 Amps): Industrial-grade equipment with high power demands, such as welders and large power tools, necessitate a 10-gauge extension cord capable of handling up to 20 amps of current without overheating.

Additional Tips for Safe Use:

  • ● Avoid daisy-chaining multiple extension cords, as it increases the risk of overload and voltage drop.
  • ● Choose extension cords with built-in overload protection features, such as circuit breakers or surge protectors.
  • ● Regularly inspect extension cords for signs of damage, fraying, or overheating, and replace them if necessary.
  • ● Store extension cords properly to prevent tangling and damage, and never run them through walls, ceilings, or under carpets.

Choosing the correct extension cord gauge is essential for safety and performance across different electrical tasks. Understanding how gauge impacts load capacity and electrical demand helps users make informed decisions, reducing potential hazards. From household chores to professional projects, prioritize safety by selecting the right gauge. GearIT offers a range from 10 to 14 Gauge to meet your needs reliably.

30 Amp 10/3 AWG NEMA TT-30 Generator Extension Power Cord - GearIT
$35.89 – $178.89
10/3 AWG NEMA TT-30 30 Amp Generator Extension Power Cord Shop Now
Shop Now
GearIT 12/3 Outdoor Extension Cord 100 Feet Triple Outlet - SJEOW - Extreme Weather Resistant - 12 Gauge 3 Prong, Blue - GearIT
12/3 SJEOW Heavy Duty Outdoor Extension Cord 3 Outlet, 100 Feet Shop Now
Shop Now

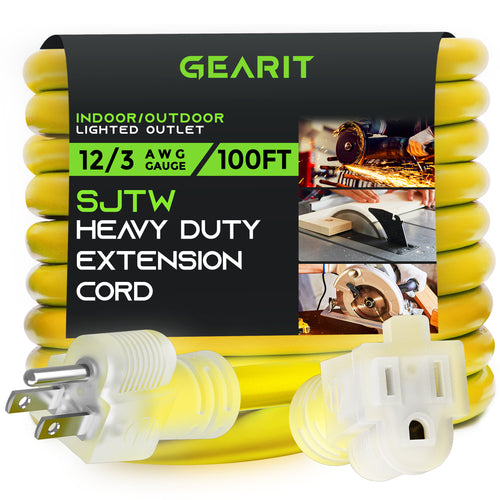

GearIT 12/3 Outdoor Extension Cord 100 Feet - SJTW - Weather Resistant - 12 Gauge 3 Prong, Yellow GearIT
