DMX Cables: The Backbone of Lighting Control Systems

In the dazzling world of event lighting, the brightness, colors, patterns, and movements of lights can enthrall an audience, creating memorable experiences. However, behind the scenes of this enchanting display lies a critical element, often overlooked: DMX cables. These unsung heroes play a fundamental role in transmitting signals from the control desk to lighting fixtures, ensuring that each light performs precisely as intended.

What is a DMX Cable?

DMX, short for Digital Multiplex, is a protocol used in professional lighting systems. A DMX cable is specifically designed to carry this digital signal reliably from a control console to the array of lighting fixtures and devices. Typically, these cables use XLR connectors with either 3 or 5 pins, though 5-pin is the industry standard.



Why DMX Cables are Essential

1. Reliable Signal Transmission: Unlike generic audio cables, DMX cables have a low capacitance, ensuring minimal signal loss. This reliability ensures that lighting instructions are carried out accurately.

2. Protection Against Interference: With their double shielding, DMX cables protect signals from electromagnetic interference, which is critical in environments laden with multiple electronic devices.

3. Scalability: DMX cables allow for daisy-chaining multiple devices. A single cable can connect up to 32 devices in a series, enabling intricate lighting setups.



Choosing the Right DMX Cable

1. Length: While long DMX cables can theoretically work, it's generally advised to keep the length under 1,000 feet to prevent signal degradation.

2. Connectors: Ensure that the connectors (3-pin or 5-pin) match the devices in your setup.

3. Durability: Investing in cables with rugged construction pays off, especially in scenarios where they might experience wear and tear.



Common Misconceptions

  • “I can just use microphone cables instead.” While they might look similar, microphone cables lack the specific design features of DMX cables, leading to potential signal issues and interference.

  • “All DMX cables are the same.” Not quite. There's a difference in quality, shielding, and reliability among brands and models.



While the luminance of stage lights captures our attention, the unseen DMX cables work tirelessly behind the scenes. They are the silent pillars ensuring that each light dances in harmony with the others, creating the spectacular shows we adore. As with many technical setups, the devil lies in the details. In the realm of lighting control, that detail is undeniably the DMX cable. So the next time you marvel at a lighting display, spare a thought for one of our DMX cables that make it all possible.

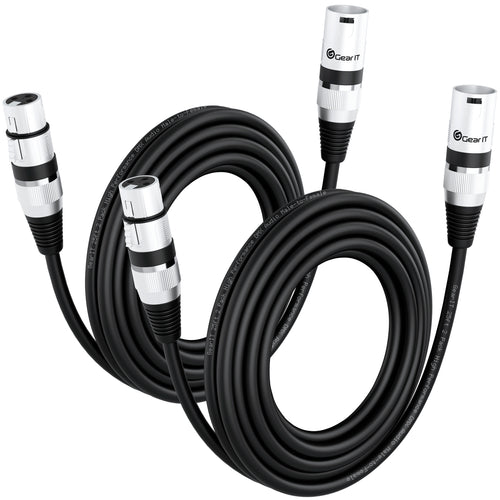

GearIT 2-Pack DMX Male to DMX Female Stage Lighting Cable (XLR Compatible), Black - GearIT
(821)
$26.99 – $69.99
DMX Extension Cable for Stage Lighting 2-Pack, Black Shop Now
Shop Now

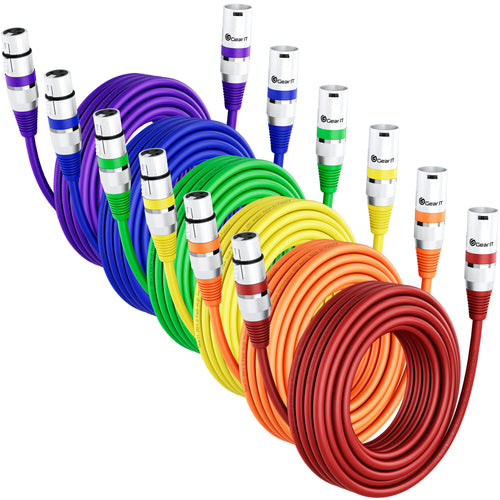

GearIT 6-Pack DMX Male to DMX Female Stage Lighting Cable (XLR Compatible) - GearIT
